Mezzanine Floor

Mezzanine Floor Building

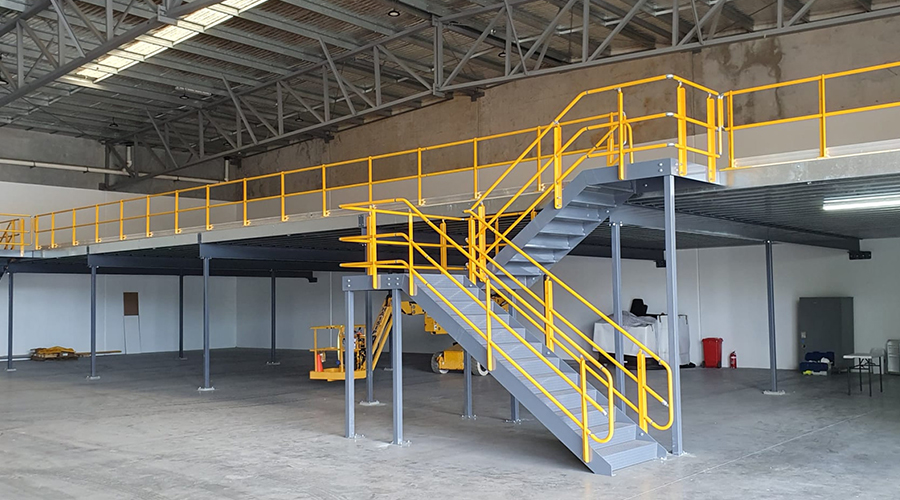

Intermediate floors are possible in metal buildings. Mezzanine floors can be provided in complete or partial area in Pre —Engineered Buildings to suit loading requirements for office and storages. Mezzanine floor consist of steel decks, supported by joists framed to the mezzanine beams. Mezzanine main beams normally runs across the width of the building and are located under the main rafters while joists run parallel to the length of the building, the top flange of the joist fit perfectly below the top flange of the mezzanine beam.

The economy of the mezzanine floor is affected by the applied load and support column spacing. Multilevel equipment platforms, catwalks, staircase etc. can be accommodated, if complete data is available.

Mezzanine Floor Building System

Composite Floor Deck is a steel deck with a ribbed profile, which binds with concrete slab and together forms a part of the floor structure. This interlocking between the concrete and the floor deck is brought about through a system of embossment and ribs which are built into the deck, creating a reinforced concrete slab that serves the dual purpose of permanent form and positive reinforcement. Composite decking is one of the most effective methods of constructing floors in steel building and very useful in high rise RCC / Steel Buildings. Metal decking can be effectively used in Multi-storey buildings (Industrial / Residential), Shopping malls, Super markets, SEZs, Silos, Storage facilities, mezzanines, bridges, walkways, platforms, etc. ADVANTAGES

Features

  • Tensile steel for composite slab construction that cuts down on slab thickness and dead weight of buildings.
  • No separate frame work required for slab casting.
  • Reduces construction time.

Applications

  • High Rise Buildings.
  • Multiplexes / Commercial Buildings.
  • Power Plant Buildings.
  • Office Buildings.
  • Mezzanine Floors in Industrial Buildings & Warehouses.
  • Steel deck for mezzanine floors.

Available Finish

  • CR Steel as per IS:513 D-Quality / HR Steel as per IS:1079 / Galvanized Steel (as per IS:277).
  • Thickness range available from 0.80 to 2mm.
